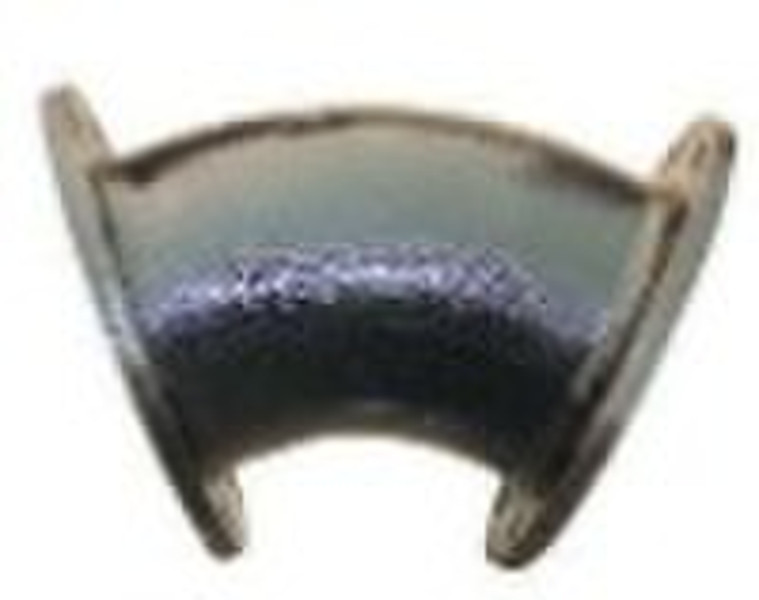

DI double flanged bend pipe fitting
LI ZHUANG
Contact person
Basic Information
| Place of Origin | Shandong China (Mainland) |
|---|---|
| Model Number | standard |
| Material | Iron |
| Technics | Casting |
| Type | Elbow |
| Connection | Flange |
| Shape | Equal |
Details of Ductile Iron Pipe FittingOf Double FlangedBend 1.Materials : DI GGG500-7 or other ductile iron. 2.Size:DN80-2000. 3.Pressure:PN10,PN16,PN25 4.Standard:ISO2531, EN545 ,EN598, BS4772. 5.Accessories:Bolt&Nut ,Gasket are available. 6.Type:11.25degree,22.5degree,45degree,90degree. 7.Suface treatment :A. epoxy inside and outside. B. inside:cement lining. outside:zinc primer and bitumen painting. C. red anti-rust coating. Specfication: DNTLMassDNTLMassPN10 PN16 PN25 PN10 PN16 PN25 8010015077.27.81301401609.311.318.59.311.318.59.3 12.4 20.5 700 800 900 14.415.616.8 480 530 580 296 403 519 326 442 567 700 800 900 2002503003508.499.610.218035040030027.55578762754778331 62 88 89 1000 1100 1200 1400 18 19.2 20.4 22.8 630 695 750 775 668 857 1050 1412 751 927 1178 1524 1000 1100 1200 1400 400 450 500 600 10.8 11.4 12 13.2 325 350 375 425 96 120 145 212 107 135 175 266 129 157 198 294 1500 1600 1800 2000 24 25.2 27.6 30 810 845 910 980 1677 1915 2465 3149 1853 2119 2717 3455 1500 1600 1800 2000 Pictures of doucble flanged bends
Delivery terms and packaging
Packaging Detail: Standard wooden cases ,crate with a layer of plastic,pallet Delivery Detail: according to the quatity of the order
Port: Qingdao
